Description

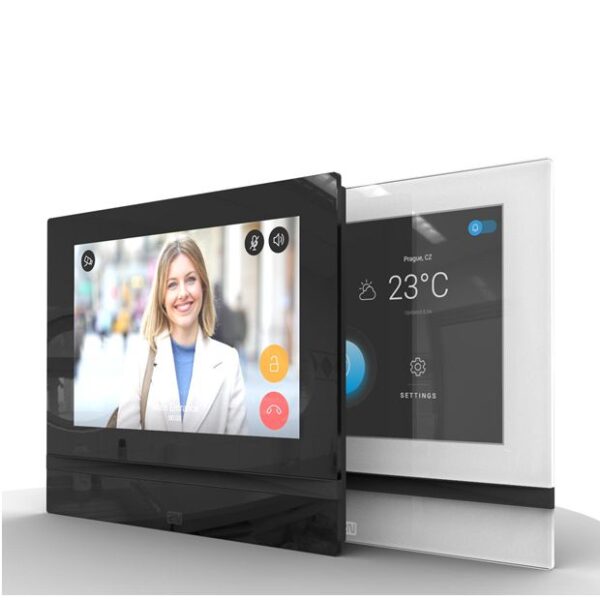

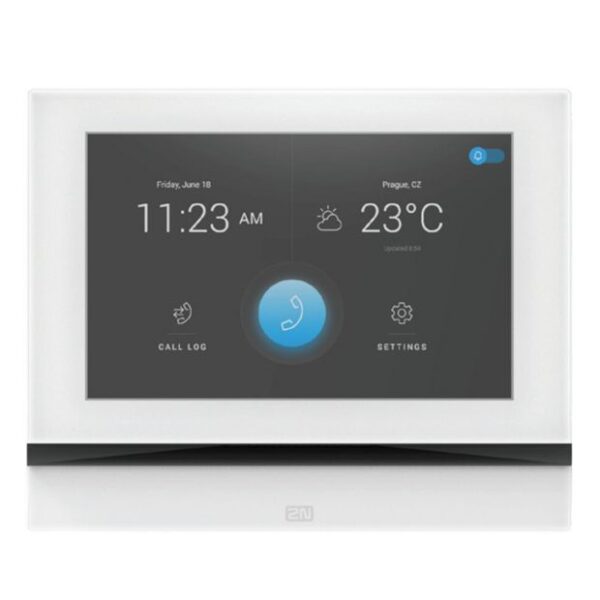

2N Indoor View Wi-Fi 7 inch answering unit looks at home in even the most luxurious of penthouse apartments! It’s advanced too – it offers widescreen HD video calls, can integrate with smart home systems, and supports video surveillance. Install it inside the wall, on the wall, or on a stand.
- 7″ HD TOUCHSCREEN
Your customer will appreciate how easy it is to operate the unit on the large display. The home screen even provides the current weather forecast. - STYLISH DESIGN
A luxury penthouse deserves a great looking unit. Offer the 2N Indoor View to ensure you win your project. - VIDEO SURVEILLANCE
The resident can see what is going on in places where no intercom has been installed, and there is only an IP camera (e.g., a hallway, yard or garage). - FULL SCREEN VIDEO CALLS
We‘ve enlarged the video call preview. This means residents can even read a courier’s name tag with ease. Wide screen calls will be compatible only with some 2N intercoms. - FIRST CONFIGURATION FROM YOUR OFFICE
Save time and money. You can set up all the units in a project remotely without the need to travel to the installation site. - RESIDENTS’ PRIVACY IN SAFE HANDS
The 2N Indoor View runs on our very own operating system. We’ve made sure that no one can listen in or record residents’ conversations. - SMART HOME INTEGRATION
The resident can turn on the air-conditioning, lighting or call the lift directly from the display on their unit. The unit can send up to 3 different HTTP commands. - GREAT FOR RETROFIT PROJECTS
In addition to the classic Ethernet version, we also offer a Wi-Fi variant which is great for adding all these advanced features to places without network cabling.
Technical Specifications
Power Supply
- Type: 12V DC adapter or PoE 802.3af
- Recommended Power Supply: 12V/1A
- Reverse Polarity Protection: Yes
User Interface
- Controls: Capacitive touch panel
- Display Size: 7″
- Resolution: 1024x600px
Audio
- Microphone: Integrated
- Speaker: Integrated, 2W
- Induction Loop Output: 600mV RMS
- Codecs: G.711a/u, G.722, G.729, L16/16 kHz
Video
- Codecs: H.264
Interface
- LAN: 10/100BaseT, RJ-45
- Recommended Cabling: Cat5e or higher
Wi-Fi (Optional)
- Frequency: 2.4GHz and 5GHz
- Standard: 802.11n and 802.11ac
- Antenna: In-built
- Important: Wi-Fi and Ethernet cannot be used simultaneously
Doorbell Input
- Input Type: Switching contact (button/relay)
- Contact Type: Normally open (NO)
- Contact Parameters: Up to 50V/5mA, DC
Mechanical Parameters
- Dimensions (W x H x D): 7.6 x 6.18 x 1.97 inches
- Weight: 1.23 lb
- Operating Temperature: 32°F to 122°F
- Relative Operating Humidity: 10% to 90% (non-condensing)
- Storage Temperature: -4°F to 158°F
- Recommended Altitude: 0 to 6,500 ft
Warranty
- Duration: 5 years
- Details: Warranty and Repairs
