2N SIP Microphone

AX914431E Axis SIP Microphone Console

Axis External IP WEB Relay - Remote Relay Control Over IP NetworkAX914421B Axis SIP Speaker wall Mounted Black

SIP based Microphone Console for paging and 2 way communication

  • Server-less paging to up to 12 zones
  • Two-way communication
  • Pre-recorded announcements
  • Easy Configuration
  • Axis Vapix support for paging
  • Easy installation with single cable
  • Listen- in function
  • Announcements prerecording
  • Support for SIP IP Phone systems



Add to wishlist
Categories: , , , , , , Tags: , , , , , ,
Brand: ,

Description

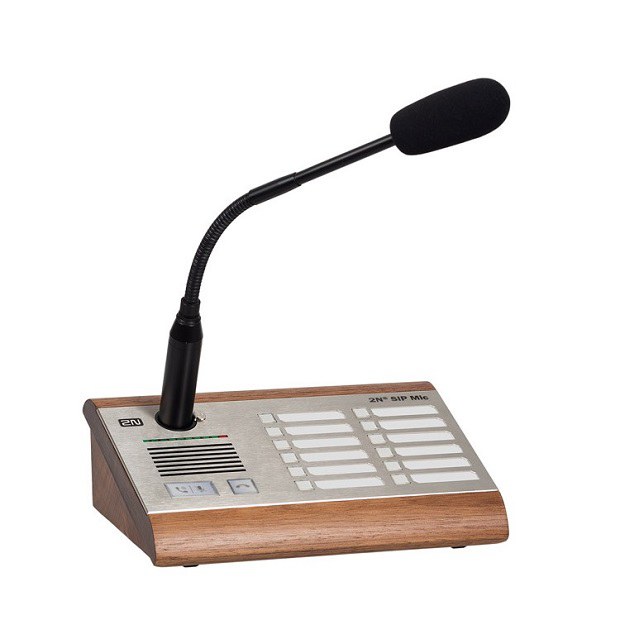

Axis SIP microphone console for paging can appeal not only by wooden designer case, but also by various advanced functions such as broadcasting to 12 zones, two-way communication thanks to an inbuilt speaker, or playing back pre-recorded messages. All these functions are available without the need of server or distance limitations.

Features & Benefits

  • SERVER-LESS PAGING TO UP TO 12 ZONES
    Axis SIP Mic uses a multicast technology and sophisticated controlling mechanism hence enabling communication to up to 12 zones. Moreover, the microphone console- speaker connection is straight forward, no server needed.
  • TWO-WAY COMMUNICATION
    Call from the Axis IP intercoms to the paging console with an inbuilt speaker thanks to SIP protocol.
  • PRE-RECORDED ANNOUNCEMENTS
    Upload or record a message via the microphone and then play it by simple push of a button to a designated zone.
  • EASY CONFIGURATION
    Zones, priorities and announcements prepared in advance can easily be set up in the clean web interface.
  • INTEGRATION WITH AN AXIS SOLUTION
    The Axis SIP microphone console is fully integrated into the AXIS Audio Manager central control software. Also, thanks to support for AXIS Vapix®, announcements can be made using AXIS cameras or speakers.
  • EASY INSTALLATION WITH A SINGLE CABLE
    The Axis SIP Mic is very easy to install simply by connecting it to an existing IP network with a PoE cable.
  • LISTEN-IN FUNCTION
    At simple press of a button one can listen to what is happening in certain zone.
  • SUPPORT FOR IP PBX (SIP)
    The Axis SIP Microphone Console can function independently or be simply connected to IP PBX.

Specifications

Description AX914431E
Audio codecs G.711u, G.722
Speakers 2 built-in, stereo, power output 2×1 W
Logical inputs 2, galvanically separated, sensitive to contact or voltage from 5 to 48 V
Relay output 1, galvanically isolated, NO and NC contact, max load 48 V, 1 A
Headphone output 3.5 mm jack, stereo, power output 2×30 mW, min. load impedance of 16 Ohm, DR. 101 dB, THD+N -85 dB
Primary microphone input symmetric, XLR, integrated phantom power supply 24 V, DR 88 dB, THD+N -82 dB
Headset microphone input 3.5 mm jack, integrated power supply for electret microphones, DR 84 dB, THD+N -78 dB
Line input 3.5 mm jack, mono or stereo non-symmetric stereo, DR 93 dB, THD+N -82 dB
Power supply 12 to 32 V, power draw max. 1 A PoE to 802.3af standard
Dimensions 209 x 65 x 143 mm
Operating temperature 0 to +40°C
Weight (Net) 1.60kg
Weight (Gross) 2.10kg

AX914431E Axis SIP Mic Datasheet

Additional information

Weight 4 kg

Accessories

Downloads

914431E 2N SIP Mic Datasheet
