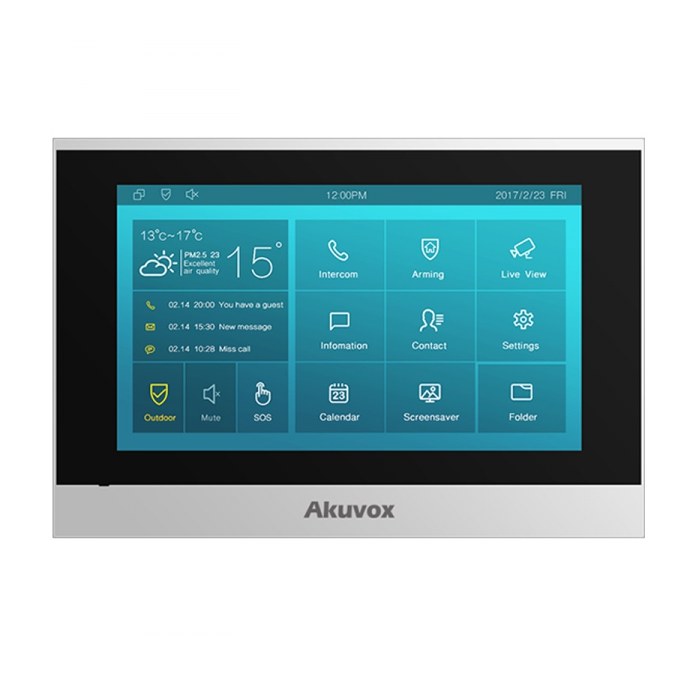

Akuvox C313S / C313W – 7 inch Multifunction Touch Screen Monitor with Wi-Fi option

Specifications

• At a Glance

  Ultra-clear, stylish appearance

  Thin profile and small footprint

  7-inch capacitive touch screen with energy saving mode

  Two-way audio communication with other units in the network

  Complies with SIP standard for easy integration in every SIP capable PBXes

  Powered by PoE or external source

  Support US or European electrical wall box mounting

• Physical & Power

  Front panel: Plastic

  RAM / ROM: 64MB / 128MB

  Display: 7 Inch TFT LCD

  Screen: 7 Inch capacitive touch screen

  Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

  RS485 port: Support

  Relay out: 1

  Bell in: 1

  I/O: 8

  Microphone: -58dB

  Speaker: 4Ω / 2W

  Ethernet ports: 2xRJ45, 10/100Mbps adaptive

  802.3af Power-over-Ethernet

  12V DC connector (if not using PoE)

  Installation: Wall-mounted & Desktop

  Dimension: 200.2×132.2×27.2mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

• Touch Screen Display

  Display Mode: Normally white, Transmissive

  LCD Size: 7inch (Diagonal)

  Resolution: 800×480

  Contrast ratio: 500:1

  Luminance: 220 cd/m2

  Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower

  Touch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: Out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

• Video

  Streaming formats: H.264

• Networking

  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs (include door access logs)

• Application Scenario

  Villas

  Apartment complexes

  Home automation systems

  Modern interiors
