Description

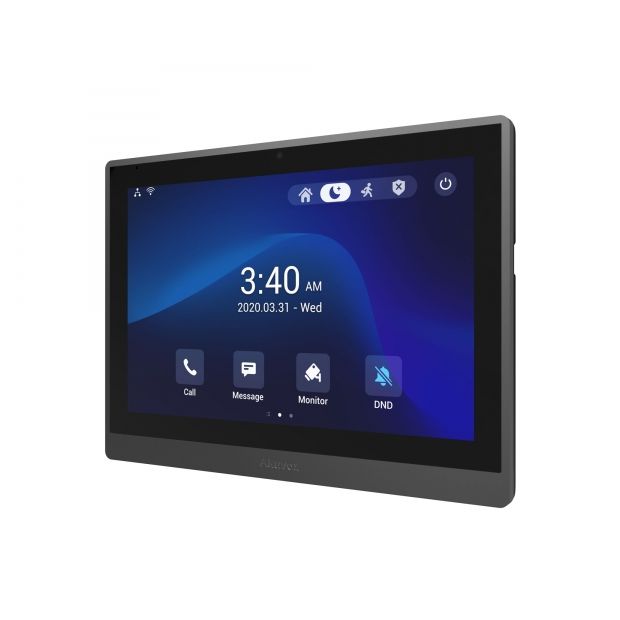

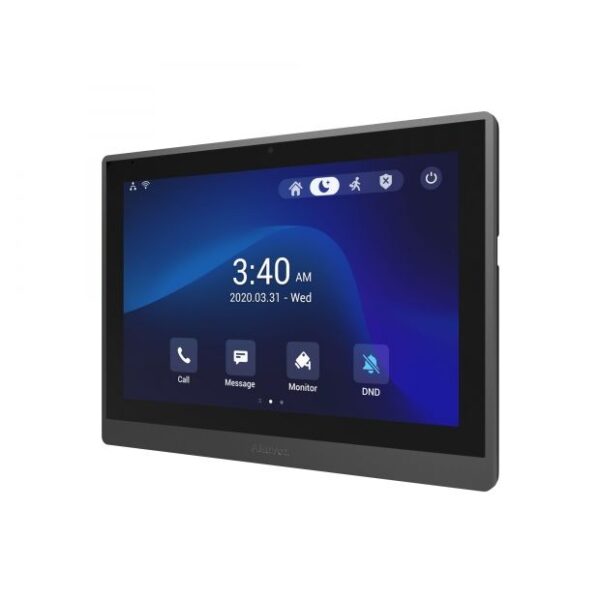

Akuvox IT88 is a 10 inch high end monitor perfect for luxury homes. With an Android 9.0 operating system, the IT88 provides audio and video communication with door phones via SIP 2.0 protocol. Delivering the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10-inch capacitive touch screen display. IT88 series is available in 2 versions – IT88S -standard version with PoE & IT88A- with Wi-Fi, Bluetooth & Camera.
Akuvox IT88 can be used for room-to-room communication using SIP 2.0 protocol. The rich interface featured in the IT88S is easy to integrate into a pre-existing digital installation where home automation or where tele health care in applications such as residential care homes may be necessary. The intercom supports real-time entrance monitoring through ONVIF/RTSP for view-to-view interaction. The user-friendly interface is easy to use offering a simple solution with minimum training for users to operate.
Akuvox IT88A also supports integration with Akuvox Smartplus Mobile Video Service to enable receiving video intercom calls remotely.
Features & Benefits
- Android 9 OS
- 10-inch capacitive touch screen with energy saving mode
- Reception of a HD picture from the door communicator
- HD video and audio communication
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Built-in SIP PBX function
- Built-in smart voice assistant
-
Built-in 1MP CMOS camera -IT88A only
- Built-in Bluetooth and WiFi – IT 88A only
IT88 Specification
-
Physical & Power
- Front panel: Aluminium alloy
- RAM / ROM: 2GB / 8GB
- Display: 10 Inch IPS LCD
- Screen: 10 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- BLE: Support BLE 4.2
- Camera: 1MP camera, CMOS
- Memory slot：1 Micro SD slot
- RS485 port: Support
- Relays out: 2
- Bell in: 1
- IO: 8
- Microphone: -26dB
- Speaker: Dual speakers, 4Ω / 3W
- Ethernet ports: 1xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Tamper resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 251×182.5×29.75mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
-
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 350 cd/m²
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
-
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
-
Video
- Streaming formats: H.263 & H.264
-
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
-
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
-
Voice Assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
-
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
