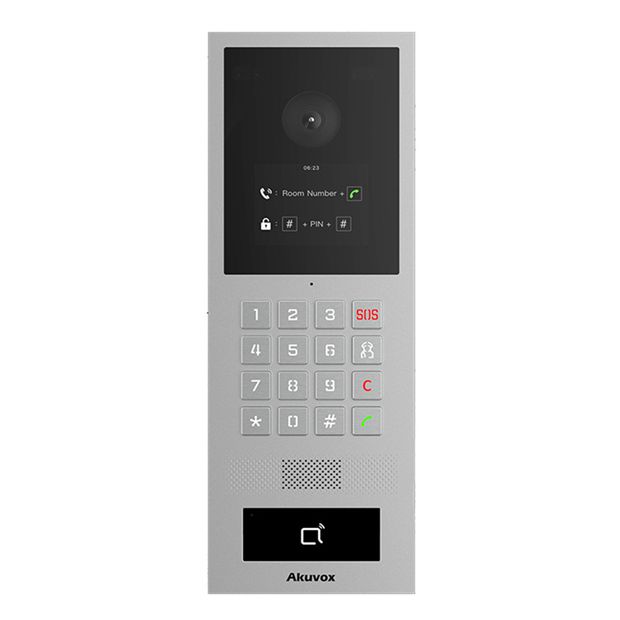

Akuvox S532 Door Intercom, Camera, Keypad, RFID, Bluetooth

Akuvox S532 SIP Video Door Phone with A Seamless Fusion of Analog and IP Technologies.

Akuvox S532 Smart IP intercom is housed in a robust IK08-rated surround making it ideal for public access and higher-risk locations. It provides a combination of contactless and conventional keypad access authentication options, ideal for all user ability types.
  • Vandal-resistant body, with numeric keypad
  • IP66 / IK08
  • 2MP camera with wide angles of 130ยบ(H), 90ยบ(V)
  • Smart motion detection with precision alerting
  • Support multiple access control methods: PIN, NFC,13.56MHz/125kHz
  • access cards, and BLE
  • Ability to work with analog intercom systems
  • Working Temperature: -40ยฐC ~ +60ยฐC
  • Flush-mount or surface-mount option
Brand:

Description

Akuvox S532ย is where the old meets the new. It is a smart SIP door phone that houses an IP-to-analog conversion module, offering an outstanding solution for analog intercom upgrade.

Akuvox S532 stands out as a leader among keypad door phones, the combination of a gray metal panel and sophisticated black screen exudes advanced technology. Its slender and robust form seamlessly integrates with modern architecture and is housed in a robust IK08-rated surround making it ideal for public access and higher-risk locations.

Theย Akuvox 532ย is ideal for multi-dwelling and social housing applications, the Akuvox S532 combines โ€˜smartโ€™ intercom technologies in a robust vandal-proof and weather-resistant housing.

Features

  • Vandal-resistant body, with numeric keypad
  • IP66 / IK08 resistance
  • 2MP camera with wide angles of 130ยบ(H), 90ยบ(V)
  • Smart motion detection with precision alerting
  • Support multiple access control methods: PIN, NFC,13.56MHz/125kHz
  • access cards, and BLE
  • Ability to work with analog intercom systems
  • Working Temperature: -40ยฐC ~ +60ยฐC
  • Flush-mount or surface-mount option

Specifications

Description S532
Enclosure Protection Rating IP66 IK08
Installation Flush or surface-mounted
RFID Card Reader 13.56MHz & 125kH, NFC
Access Authentication Methods RFID, BLE, NFC, PIN Code
Operating System Linux
Camera 2MP camera with wide angles of 130ยบ(H), 90ยบ(V)
Display Screen 2.8 inch LCD
Relays Out 2
Inputs 4
Front Panel Material Aluminium
Light Sensor Yes
Motion Sensor Yes
Wiegand Support Yes
RS485 Port Yes
Power 12v DC / PoE
Dimensions 310(H) x 106(W) x 38(D) mm
Weight (Net) 1.10kg
Weight (Gross) 2.00kg

Akuvox S532 Datasheet
