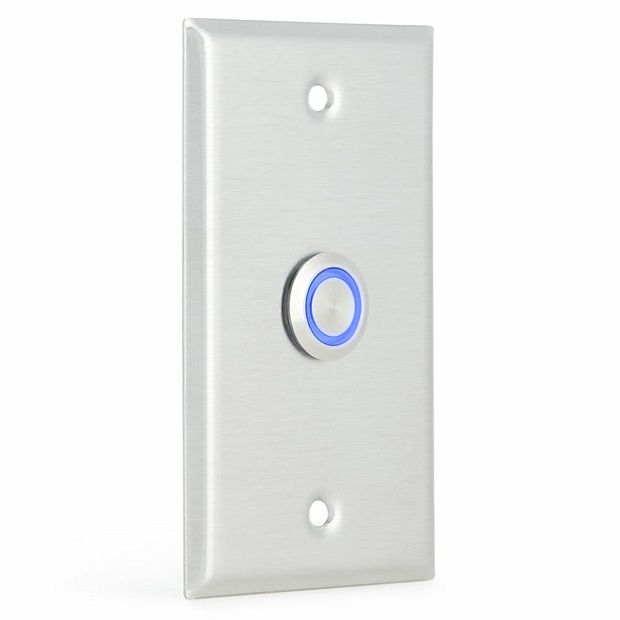

Algo 1203 Call Button

Fanvil FH-S01 SIP Ceiling SpeakerAxis AX9157002 On wall Surface Mount box for Axis IP Style

Emergency alerting and customer assistance button.
Single gang footprint for concealed placement, if required.
Easy to use illuminated button with flash confirmation when activated.
Interfaces via relay input to all Algo IP speakers, IP strobe lights, and 8301 paging adapter.
Single twisted pair wiring for location almost anywhere (24 gauge).
Powered, supervised and web configured via Algo PoE IP endpoint.
Complements Algo audible and visual IP endpoints for notification and alerting over any size workplace, campus or enterprise.
Product dimensions: 2.8″ x 4.5″ x 1.5″ (7.1cm x 11.4cm x 3.8cm)

Categories: 2 Way IP Speakers with integrated Mics for isolation rooms, Algo PA Accessories, IP PA Accessories Tag: Algo

Brand: Algo

Description

Description

Algo 1203 Call Button is a single gang illuminated LED button for alerting with any Algo IP speaker, IP strobe light or 8301 paging adapter. For any application requiring one-touch programmable announcement or alert notification, the Algo 1203 Call Button is designed as a simple and intuitive interface for emergency and non-emergency alerting or for improving customer service.

When configured with a compatible Algo IP endpoint for button press activation, the Algo 1203 Call Button initiates one of the following actions:

Multicast an alert or announcement.
Make a SIP call to a configured extension to play a discreet notification when the call is answered.
Make a SIP call to a configured extension and permit hands-free two-way communication (e.g. via the Algo IP speaker microphone).

Algo 1203 Quick Start Guide
