Description
Algo 8028 SIP Doorphone (G2) is a PoE IP intercom for hands-free visitor communication at a secure entrance door or gate. This IP intercom / doorphone is outdoor-rated and is also a fully compliant 3rd party SIP endpoint. As a result, the 8028 is compatible with most hosted / cloud and premise-based VoIP telephone systems.

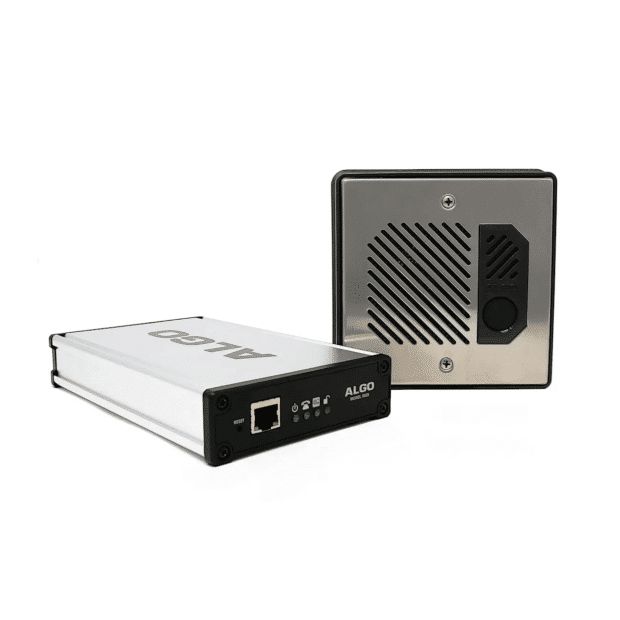

Powered via PoE and UL/CSA, FCC and CE certified, this doorphone kit includes a controller, an intercom station with stainless steel faceplate, and a surface mount bracket for wall mounting. The intercom station can also be flush mounted into a double gang box (not included). Mounting gaskets are also included in the kit for installing the intercom in any outdoor environment. A brass faceplate is available for separate purchase.
Secure Door / Gate Access Control
A controller + intercom station are two components of the 8028 IP doorphone. The controller provides the network connection and the relay for door / gate access control. As the controller is generally located inside the premise, the 8028 is a secure solution in the event where there is tampering of the public-facing intercom station. The relay and network connection are in no way exposed, and unauthorized entry to the building or access to the network is prevented.
The 8028 access control relay can connect to any type of industry-standard door strike, gate activation system or access/security control panel. A 30V 1A normally open or normally closed relay is available from the 8028 controller for this purpose. A door strike is not included with the 8028 IP doorphone.
Generally, it is best the strike power be provided using the manufacturer’s power supply, however, the 8028 IP doorphone can provide 24V strike power when powering the doorphone with PoE + (IEEE 802.3at) or purchasing the Algo X24VG Power Supply. Powering the device via PoE (IEEE 802.3af) provides no strike power. Please see the 8028 product specifications for the available strike power amperage with either the PoE + or Algo power supply option. Note: When extending the 8028 outside the perimeter of a building the X24VG Power Supply is recommended for earth grounding to meet safety and regulatory requirements.
Auxiliary Low Voltage Inputs & Outputs
A number of low voltage programmable inputs and outputs available from the controller and intercom station. Common uses for the auxiliary relays include configuring an input to use an existing doorbell, for example, or a relay output to activate a loud ringer or strobe light for intercom call telephone ring alerting. A door sensor input is also available for configuration, including the option to activate an alarm if the door remains open for an extended period (e.g., tailgating, leaving the door ajar).
Legacy Analog Doorphone Retrofit for Upgrading to VoIP
The 8028 SIP Doorphone eliminates the need for an ATA or FXS port.
When migrating a legacy telephone system to VoIP, the 8028 is ideally suited as retrofit solution of an existing analog intercom. It is often the case that 24 gauge twisted pair wiring is used with legacy intercom systems. This wiring can be re-used to connect the 8028 controller to the Algo intercom station, thereby saving time and money in not having to re-wire. Twisted pair wiring can also be used to wire the relay for door / gate control. Note: The Algo 8028 controller cannot be wired to a legacy analog intercom station.
Benefits of the Algo IP Doorphone
- Network managed and supervised SIP endpoint.
- Eliminates FXS port or ATA.
- PoE (IEEE 802.3af) for plug-and-play network connectivity.
- A two-piece solution including controller + intercom station secures the access control relay and the network connection.
- Twisted pair 24 gauge wiring simplifies retrofit applications when upgrading legacy analog intercom systems to VoIP.
- Extended wiring flexibility of up to 1000 feet (305m) for gate applications outside the perimeter of the building.
- Wideband G.722 HD voice audio for clarity and intelligibility.
- Backlit call button for better visibility in low light conditions.
Features
- Secure SIP using TLS and SRTP.
- Wideband HD voice for high intelligibility speech.
- NEMA 3R outdoor rated.
- A two-piece solution including controller + intercom secures the access control relay and the network connection.
- Seamless relay activation via telephone keypad during the intercom call.
- Extended wiring up to 1000 feet (305m) for gate applications outside the perimeter of the building.
- Twisted pair 24 gauge wiring simplifies retrofit applications when upgrading legacy analog intercom systems.
- Configuration via user friendly web interface or auto-provisioning.
- PoE (IEEE 802.3af); (PoE + IEEE 802.3at if 24V 0.5A strike power required).
- Ideal for door or gate entry, in addition to controlling access points, and secure areas such as a daycare, hospital ward, lab, or data center.
