ALGO 8180 – SIP Paging Speaker, Loud Ringer / Alerter.

Loud Telephone Ringer / Alerter – IP PoE Speaker for noisy areas

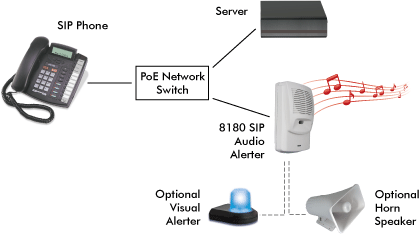

In noisy factory environments where it is difficult to hear the telephone ring, the Algo 8180 can be used as a loud ringer / alerter to notify users of phones ringing. The Algo 8180 is a SIP compliant speaker capable of integration with IP Phone systems, it supports PoE for quick and easy installation and does not require an additional amplifier.

Algo 8180ย SIP Audio Alerter for Loud Ring and Voice Pagingย Equipped with a high efficiency integrated amplifier and tuned high quality loud speaker, theย 8180ย is typically eight times louder than a telephone speaker. If the optional 1185 Horn Speaker is used, then theย 8180ย can be twenty times louder.

  • Superb audio clarity and intelligibility
  • Network managed and supervised SIP and multicast endpoint
  • PoE (802.3af) for plug and play network connectivity – no additional amplifier needed
  • Multicast to scale from one to many speakers
  • Web login for easy provisioning and management
  • Talkbackย – The 8180 microphone supports talkback in page mode for two way communication and verification
  • Multifunctional speaker for voice paging, loud ringing, emergency notification alerting and bell scheduling applications

Upgraded G2 version now available with enhanced multicast options, relay port, enhanced security and encryption etc.

Please contact us for priceย  or click on Add to Quote Request button below.



Brand:

Description

ALGO 8180 – SIP Paging Speaker, Loud Ringer / Alerter is Equipped with a high efficiency integrated amplifier and tuned high quality loud speaker, the 8180 is typically eight times louder than a telephone speaker. If the optional 1185 Horn Speaker is used, then the 8180 can be twenty times louder. In noisy factory environments where it is difficult to hear the telephone ring, Algo 8180 can be used as a loud ringer / alerter to notify users of phones ringing.

ALGO 8180 – SIP Paging Speaker, Loud Ringer / Alerter is a SIP compliant speaker capable of integration with IP Phone systems, it supports PoE for quick and easy installation and does not require an additional amplifier.

Download Algo 8180 SIP Audio Ringer / Alerter Datasheet

Benefits

  • Superb audio clarity and intelligibility
  • Network managed and supervised SIP and multicast endpoint
  • PoE (802.3af) for plug and play network connectivity – no additional amplifier needed
  • Eliminates narrowband FXS port or ATA
  • Multifunctional speaker for voice paging, emergency notification and ring alerting. Easily integrates with the Algoย 8301ย for automating playing tones and announcements for scheduled events

Features

  • Wideband G.722 codec support for HD Voice
  • Multicast send or receive capability for cost effective scalability – mix with any number and variety of Algo speakers, strobes and paging adapters for more comprehensive PA and alerting solution requirements
  • Supports RTP multicast, in addition to Polycom Group Page, InformaCast (part no. 8180-IC) and Syn-Apps Revolution
  • SIP compatibility with all leading UC vendors including: Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitch, NEC, Polycom and Yealink to name a few
  • Configurable through web interface
  • Auto-provisioning (i.e., TFTP, FTP, HTTP, HTTPS). Also supported: TLS & SRTP (secure SIP signalling and media), SIP over TCP (allows increased packet size over UDP), DNS SRV Record, and CDP/LLDP automatic VLAN assignment.
  • SNMP supervision or via the Algoย 8300 Controller
  • Internal memory of 1GB for uploading custom WAV files or recorded messages for notification alerting. Pre-loaded with severalย ring tonesย including bell, chime, gong, buzzer, warble, and barking dogs
  • Multiple SIP registrations for Page (50), Emergency Alert (10) and Ring (10) extensions
  • Outputs for external speaker, slave amplifier (not isolated and balanced), or strobe/visual alerter
  • UL/CSA, FCC and CE certified
  • Dimensions: 7″ x 4″ x 2.6″ (17.8cm x 10.2cm x 6.5cm)

Applications

  • IP loud ringer, indoors, for high noise environments or where employees are wearing hearing protection (e.g., machine shop, garage, manufacturing plant, utility, farm, etc.)
  • IP voice paging in a classroom, office, retail store, etc.
  • Multicast wide area emergency, safety and security notification alerts (e.g., lockdown, evacuation, reverse evacuation, medical emergency, safety alert, etc.). Combine with any number of Algo visual and audible IP endpoints
  • OSHA compliance
  • Scheduled or automated announcements. Using the Algo 8301 to multicast, announcements/tones can be played over any model of Algo IP speaker. For example, school (i.e., class changes, recess, playing an anthem, etc.), retail and healthcare announcements (i.e., store closing, visiting hours, etc.), and workplace shift changes, breaks, etc.

Download Algo 8180 SIP Audio Ringer / Alerter Datasheet

Additional information

Weight 1 kg

Specifications

Specifications

Item Description
Power Input 48 V PoE Class 0 (Maximum 12.95 W – Idle 1 W)
Configuration Web Interface or Auto-Provisioning via TFTP, FTP or HTTP
Sound Pressure Level
(dBA at 1 m)
106ย dBAย internal speaker; 120 dBAย optional external horn speaker
Internal Memory 3 MB (6 minutes @ 8 kHz sampling, 8-bit ยต-Law audio; 90 seconds @ 16 kHz sampling 16-bit linear audio)
Relay Output Max 30 V 50 mA
Speaker Output 8 Wrms 8 Ohm (auto-detection disconnects internal speaker)
Audio Output 0 dBm into 600 Ohm load
Ring Tones
(shipping with 8180)
Bell NA, Bell UK, Buzzer, Chime, Dogs, Gong, Warble1 (low), Warble2 (medium), Warble3 (high), Warble4 (trill)
Environmental 0-40ยฐ C; 10-95% RH non-condensing Indoor use only (horn speaker may be located outdoors)
NAT STUN, CRLF Keep Alive
Compliance EN60950:2001, IEEE802.3af, RFC3261, RoHS, CE, FCC, CSA (USA & Canada)
Dimensions Height: 17.8 cm (7″)
Width: 10.2 cm (4″)
Depth: 6.5 cm (2.6″)
Dimension diagrams, including mounting plateย

Note:ย In the interests of continuing product improvement, specifications are subject to change without notice.

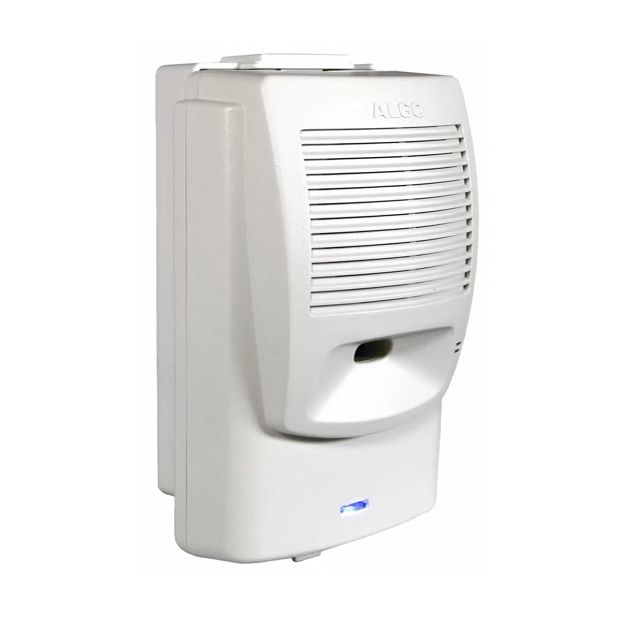

Front and Back Views

8180 Front View - Back View

Accessories

PoE Injector / Switch

Downloads

Download Algo 8180 SIP Audio Ringer / Alerter Datasheet

Video Presentation
