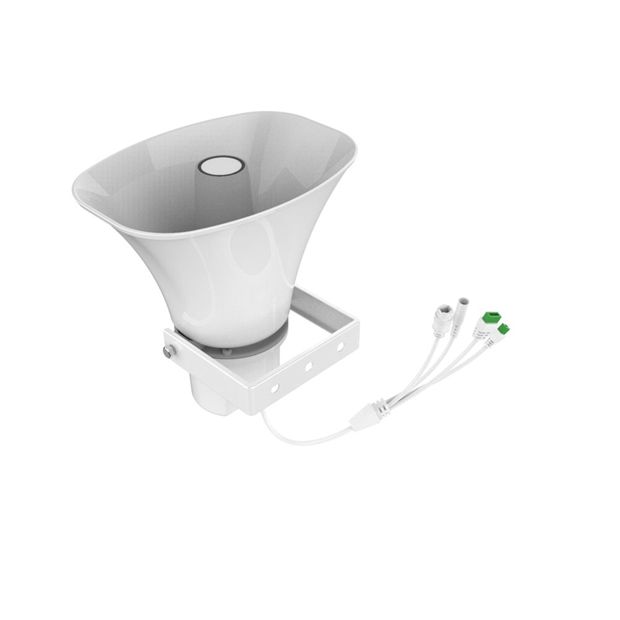

Fanvil A233 Horn Speaker, 30W, PoE

  • Excellent sound quality: Support HD intercom, lossless music broadcast
  • Flexible integration: Support standard SIP protocol, HTTP API, short circuit input and output and video linkage, easy to integrate with third-party systems
  • Easy to manage: Support Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
  • Functional integration: Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check/monitoring, priority management and other functions in one
  • Multi-mode: Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode
  • Protection grade: IP66 waterproof and dustproof grade, suitable for all kinds of harsh environment.
Brand:

Description

Fanvil A233 horn speaker is a commercial-grade IP audio terminal. It can function independently as an audio system or integrate with external systems such as unified communication systems, video surveillance systems, Fanvil broadcast & intercom system, access control systems, digital billboards, and fire alarm systems, facilitating unified configuration and operation. The IP66 protection rating ensures effective waterproofing and dustproofing, making it suitable for most outdoor environments.

Fanvil A233 horn speaker features a 30W speaker delivering clear sound with high volume and wide dispersion. It has a robust and durable appearance resulting in lower maintenance costs. The A233 also has a high IP66 protection rating effectively preventing water and dust ingress, making it ideal for outdoor settings like school campus / playgrounds, community squares, parks, mine sites etc.

Features

  • Excellent sound quality: Support HD intercom, lossless music broadcast
  • Flexible integration: Support standard SIP protocol, HTTP API, short circuit input and output and video linkage, easy to integrate with third-party systems
  • Easy to manage: Support Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
  • Functional integration: Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check/monitoring, priority management and other functions in one
  • Multi-mode: Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode
  • Protection grade: IP66 waterproof and dustproof grade, suitable for all kinds of harsh environment

Fanvil A233


Physical Specifications

  • Power Port: DC 24V/2A (Circular DC power jack)
  • RJ45 Port: 1 (Connects to Internet or LAN)
  • Short Circuit Input Port: 1
  • Short Circuit Output Port:
    • Max Support: 30V/2A
    • Terminal Socket
  • Protection Level: IP66
  • Working Temperature: -30°C to 60°C
  • Storage Temperature: -40°C to 70°C
  • Working Humidity: 10% to 95%
  • Installation: U-bracket installation
  • Color: White
  • Device Dimensions: 285 x 285 x 205 mm
  • Gift Box Dimensions: 310 x 250 x 310 mm
  • Outer Carton Dimensions: 515 x 320 x 640 mm (4 pieces)

Fanvil A233 Horn Speaker Datasheet
