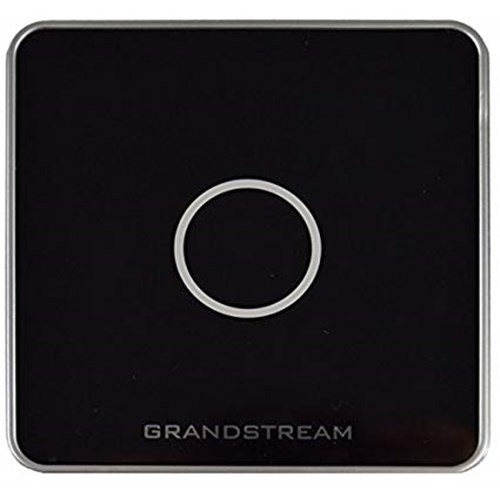

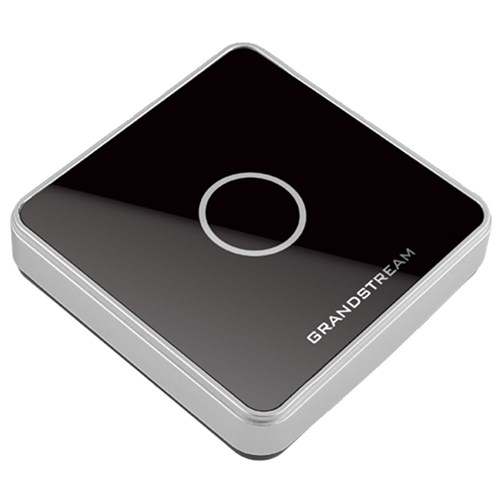

The USB RFID Card Reader is available for use with the GDS series of IP Door Systems.
The USB RFID Card Reader is available for use with the GDS series of IP Door Systems. This USB RFID Card reader can be installed anywhere and connect via USB to any computer running Grandstream’s free GDS Manager software to allow all RFID Card Reader activity to be tracked, monitored and managed centrally by GDS Manager. The device is fully powered through USB and offers a built-in antenna with card-seeking mode.
Card Supported: 125KHz: EM4100 RFID card
Working Frequency: 125KHz
Power Supply: DC 5V (±4%)
Electric Current Standby: Current 20mA; Operation Current Less Than 35 mA
Operating Distance: 0-40mm effective distance, the use of ID card and the Reader
Working Temperature: -10°C ~ 70°C
Storage Temperature: -20°C ~ 80°C
Dimensions: 108.5mm x 108.5mm x 24mm ±3mm
USB Cable Length: 1.5 Meters
