GRP2612

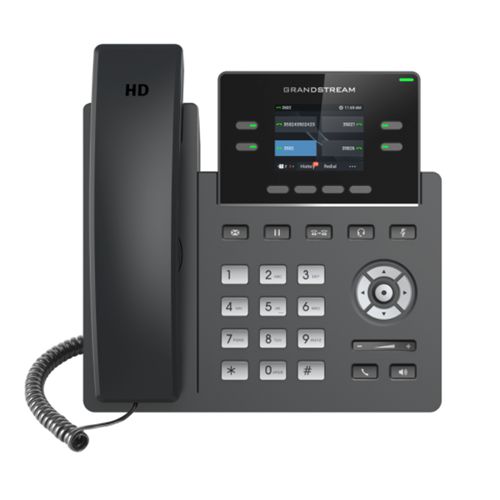

Grandstream GRP2612/P/W, 4 line IP Phone

Grandstream - GWN7802Grandstream GRP2604/P, 3 line IP Phone

  • Supports 2 SIP accounts and 4 multi-purpose line keys
  • GRP2612W includes built-in dual-band Wi-Fi support
  • Swappable faceplate to allow for easy logo customization
  • HD audio supporting all major codecs, including wideband codecs G.722 and Opus
  • Up to 16 digital BLF Keys
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE (GRP2612G)
Add to wishlist
Categories: , , ,
Brand:

Description

The GRP2612 features a sleek design and a suite of next-generation features including Wi-Fi support on the GRP2612W and PoE on the GRP2612P/GRP2612W/GRP2612G.  Key features include 16 virtual multi-purpose keys (VPKs), a color LCD with swappable face plates for easy logo customization and more. The GRP series includes carrier-grade security features to provide enterprise level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2612 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Features

  • Supports 2 SIP accounts and 4 multi-purpose line keys
  • GRP2612W includes built-in dual-band Wi-Fi support
  • Swappable faceplate to allow for easy logo customization
  • HD audio supporting all major codecs, including wideband codecs G.722 and Opus
  • Up to 16 digital BLF Keys
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE (GRP2612G)

Downloads

GRP2612P/W Datasheet

GRP261x/GRP262x/GRP263x/GRP2670/GRP2650 Series – Administration Guide

GRP261x/GRP262x/GRP263x/GRP2670/GRP2650 Series – User Guide



Specifications

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP/RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, FTP/FTPS, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces

Dual switched auto-sensing 10/100 Mbps Ethernet ports (GRP2612)
Dual switched auto-sensing 10/100 Mbps Ethernet ports with integrated PoE (GRP2612P
& GRP2612W)
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
(GRP2612G)

Graphic Display

2.4 inch (320×240) TFT color LCD

Feature Keys

4 line keys with up to 2 SIP accounts, 4 programmable contexts sensitive Softkeys, 5 navigation/menu keys, 9 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME+, VOLUME-

Voice Codec

Support for G.729A/B, G723.1, G.711µ/a-law, G.726, G.722 (wide-band), OPUS, iLBC and in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets)

Telephony Features

Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call-appearance (SCA), bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 2000 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

HD audio

Yes, both on handset and full-duplex handsfree speakerphone

Base Stand

Yes, allow 2 angle positions

Wall Mountable

Yes, (*wall mount sold separately)

QoS

Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control

Multi-language

LCD Language: English 简体中文 (Simplified Chinese) العربية (Arabic) Català (Catalan) Čeština (Czech) Deutsch (German) Ελληνικά (Greek) Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Latviešu valoda (Latvian) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Svenska (Swedish) Slovenščina (Slovenian) Slovenčina (Slovak) Türkçe (Turkish) Українська (Ukrainian) 正體中文 (Traditional Chinese)
WebUI Language: English 简体中文 (Simplified Chinese) العربية (Arabic) Čeština (Czech) Deutsch (German) Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Slovenščina (Slovenian) Türkçe (Turkish) 繁體中文 (Traditional Chinese)

Upgrade/Provisioning

Firmware upgrade via TFTP/FTP/FTPS/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency

Universal power adapter included: Input:100-240 VAC; Output: +5VDC, 0.5A;

Integrated Power-over-Ethernet (802.3af)

Physical

Dimension : 203mm x 193mm x 52.1mm

Unit weight : 554g

Package weight : 936g

Temperature and Humidity

32-104℉ / 0～40℃, 10-90% (non- condensing)

Package Content

GRP2612/GRP2612P/GRP2612W/GRP2612G phone, handset with cord, base stand, universal power supply (except GRP2612P), network cable, Quick Installation Guide

Compliance

GRP2612/GRP2612P/GRP2612G:

FCC: Part 15 Class B; FCC Part 68 HAC.

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.

RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004

IC: ICES-003; CS-03, Part V.

GRP2612W:

FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC.

CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311.

RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.

IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.
